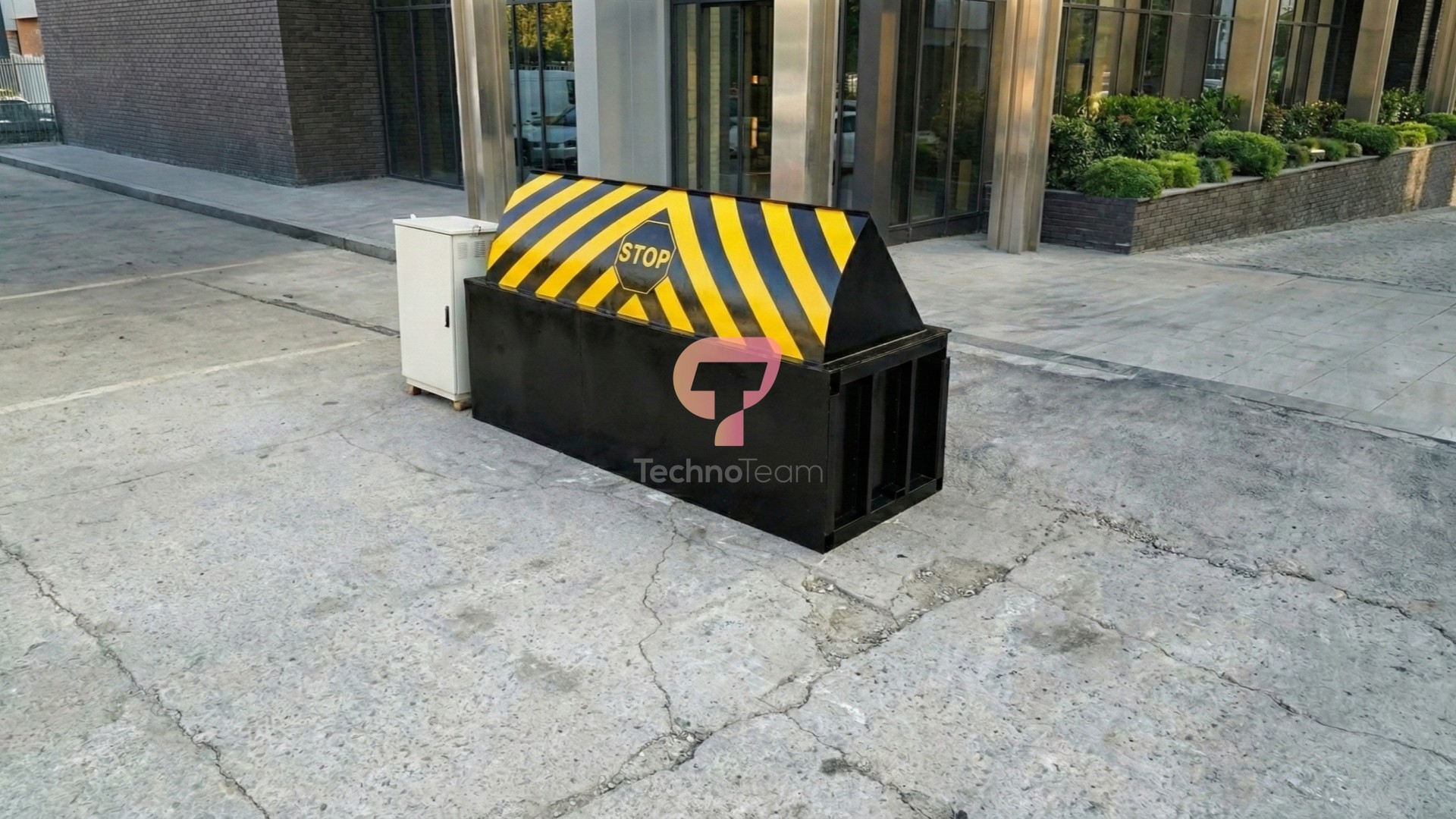

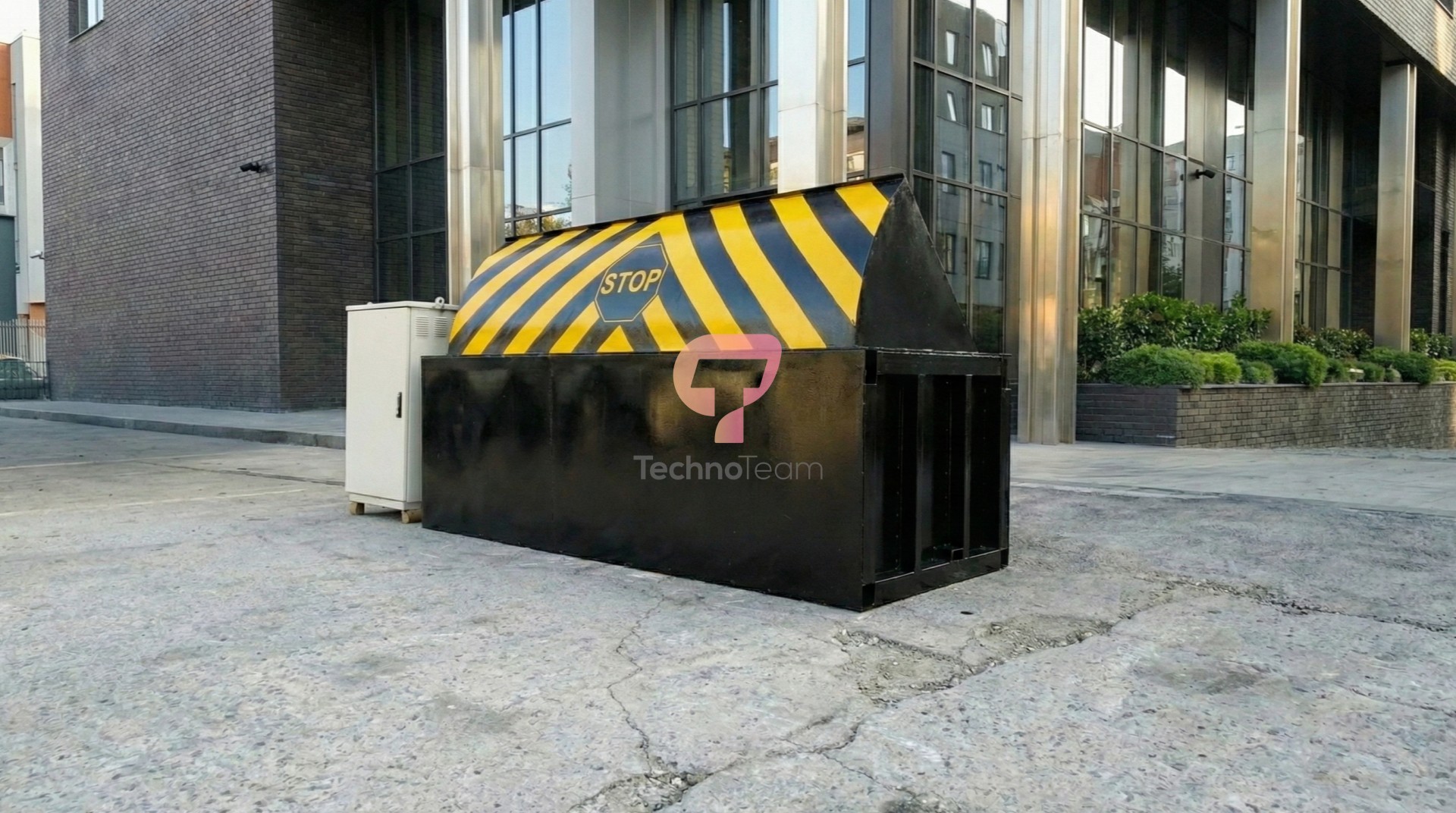

HYDRAULIC ROAD BLOCKER
Techno Team Hydraulic Road Blockers are Hostile Vehicle Mitigation (HVM) solutions that provide high security protection from vehicle borne hostile attack and are the ultimate deterrent to unauthorized vehicles entering a site.
Techno Team Road Blockers are used where the highest levels of security and vehicle control are necessary, where larger vehicles operate or where the site risk level considers to be at risk from a vehicle terrorist attack.
Testing of our road blockers has been analyzed including FEM impact testing according to BSI PAS 68, IWA 14-1 & ASTM 2656 standards.
The drive unit is electro hydraulic but in a case of power failure or an emergency situation, road blocker can be controlled (raised or lowered) manually with the help of manual hand pump
STANDARD HPU: Hydraulic unit is specially designed for road blockers and bollards. Standard components are like that; manometer, manual hand pump, oil level and temperature gauge, direction control valves, pressure adjustment valve, IE2 high efficiency electric motor.
DC OPERATION (DCO): In case of power failure, suitable to powered up to 10 full cycles without electricity. This system is working online type and can be automatically switch between AC and DC power. Additional system components are like that; heavy duty battery charger (inverter), DC Power Pack, Dry-Gel Type Batteries and etc...
EMERGENCY FAST OPERATION (EFO): In case of emergency, optional Emergency Fast Operation system raises the road blocker to fully up position in less than 1 second, thanks to high-pressured accumulator. This feature is activated by the panic button on remote control keyboard or any external signal such as Techno Team Rising Arm Barrier’s crash detection
Design Features
- From 1 up to 6,5 meter width
- up to 1,1 meter height
- Outdoor Hydraulic Power Unit (IP67 protected)
- Emergency raise up (up to 1,5 sec.)
- LED indicator on front
- Battery back-up for power off situation
- EFO for emergency and fast rising up
- LAN Interface for management/diagnostic from remote
